Vibration Mitigation

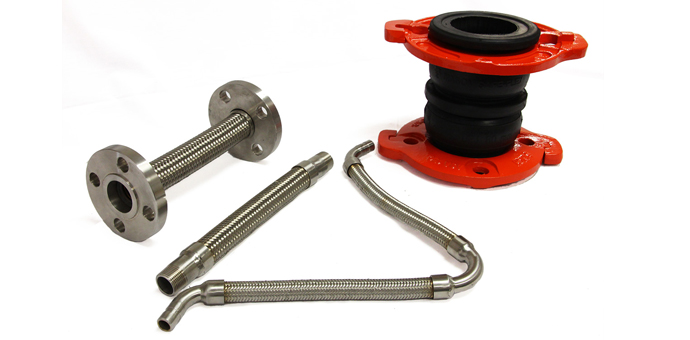

Tecoustics inventories a large selection of Mason Industries neoprene and stainless steel flex connectors. Mason flex connectors can be custom manufactured to suit any specification or requirements.

Rubber or Neoprene Expansion Joints

Space/Cost Savings
Reduces or eliminates nozzle loading (stress on pump inlet/outlet flanges)
Eliminates vibration at blade frequency (# of vanes * rotational frequency rpm)
Versatility
Custom manufacturing and custom liners available
maintenance free
Increases life expectancy of the entire system
low movement forces
excellent resistance to shock and bending loads (water hammer, surges, seismic)

nylon must be de-rated at elevated temperatures
requires a solid mating surface and not a hollow flange (Victaulic requires a spacer flange)
require guides on longer piping lengths, must be designed on a specific basis
when control rods are added, the expansion joint will always be in the full open position and will not accommodate axial motion
cannot handle elevated temperatures or corrosive material
control rods cannot resist thermal expansion beyond design limits due to their smaller cross section when compared to the steel pipe

The Mason Advantage

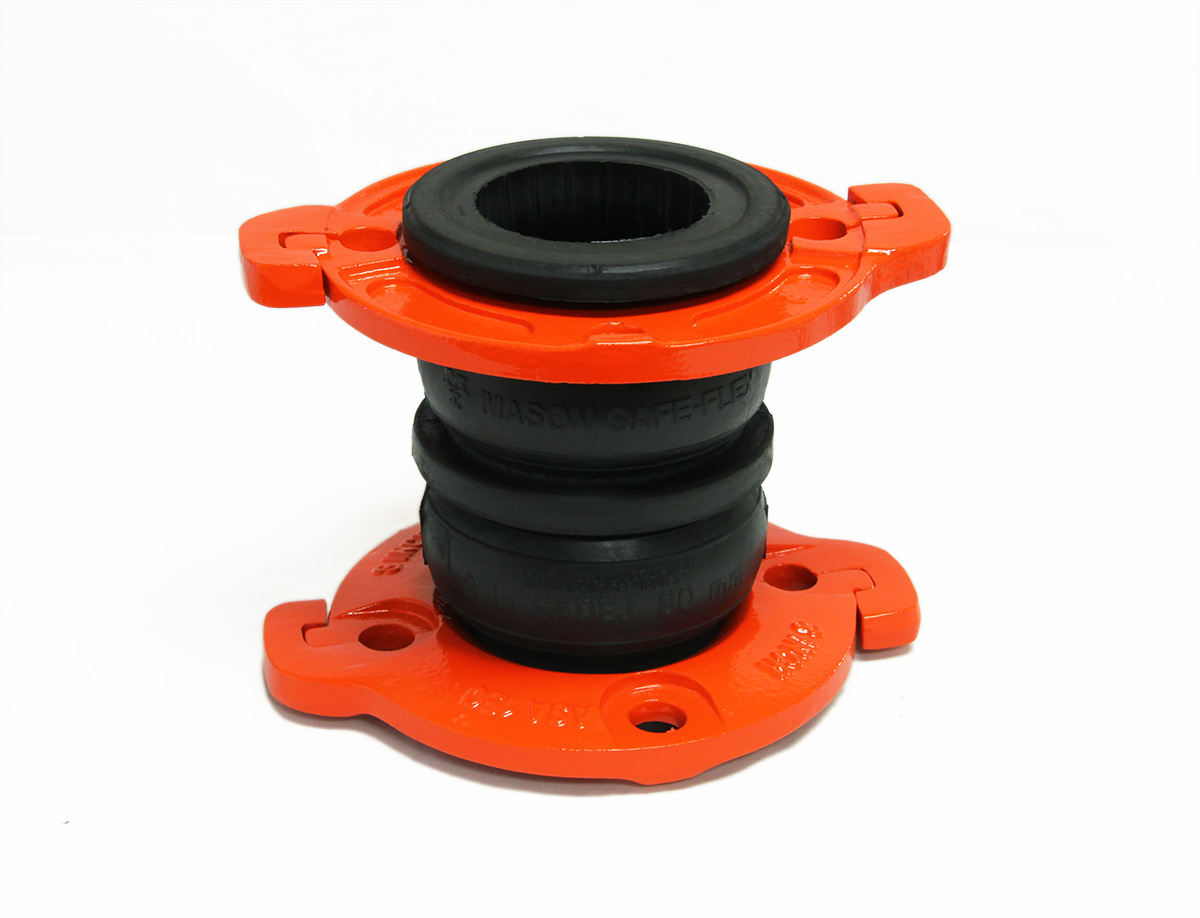

Mason SFDEJ

There are a variety of expansion, noise and vibration problems which can be solved by a properly designed and installed flex connector. A typical problem in condominiums is the base mounted or inline pumps in the mechanical room are not treated with flex connectors. A noise problem then manifests itself as what is known as Blade Passage Frequency, which is basically a vibration source travelling through the pipe and water column and can bother residents of the apartment several floors away from the pumps. The Mason SAFEFLEX SFDEJ connector eliminates this problem when installed at the pump with its double sphere design, and eliminates methods of failure such as burst or flange pullout.

For more information on the Mason SFDEJ and other SAFEFLEX connectors, please download the bulletin here.

Stainless Steel Flexible Connectors

The Mason Advantage

Mason Vee Joints

There are many applications which can benefit from the addition of flex connectors. They can compensate for misalignment, provide vibration control, compensate for thermal movement and seismic movement and act as a reducer or coupler. Mason flexible hose is available in all fitting options and can be customized to any length or diameter. The Mason Vee Joint, can take 4″ of movement in all directions, and produces almost zero thrust forces. It is the ideal application for higher movement or multi-directional movement such as building seismic joints.

For more information on the Mason Vee connector, please download the bulletin here.

For test data on the Mason Vee connector, please download the bulletin here.

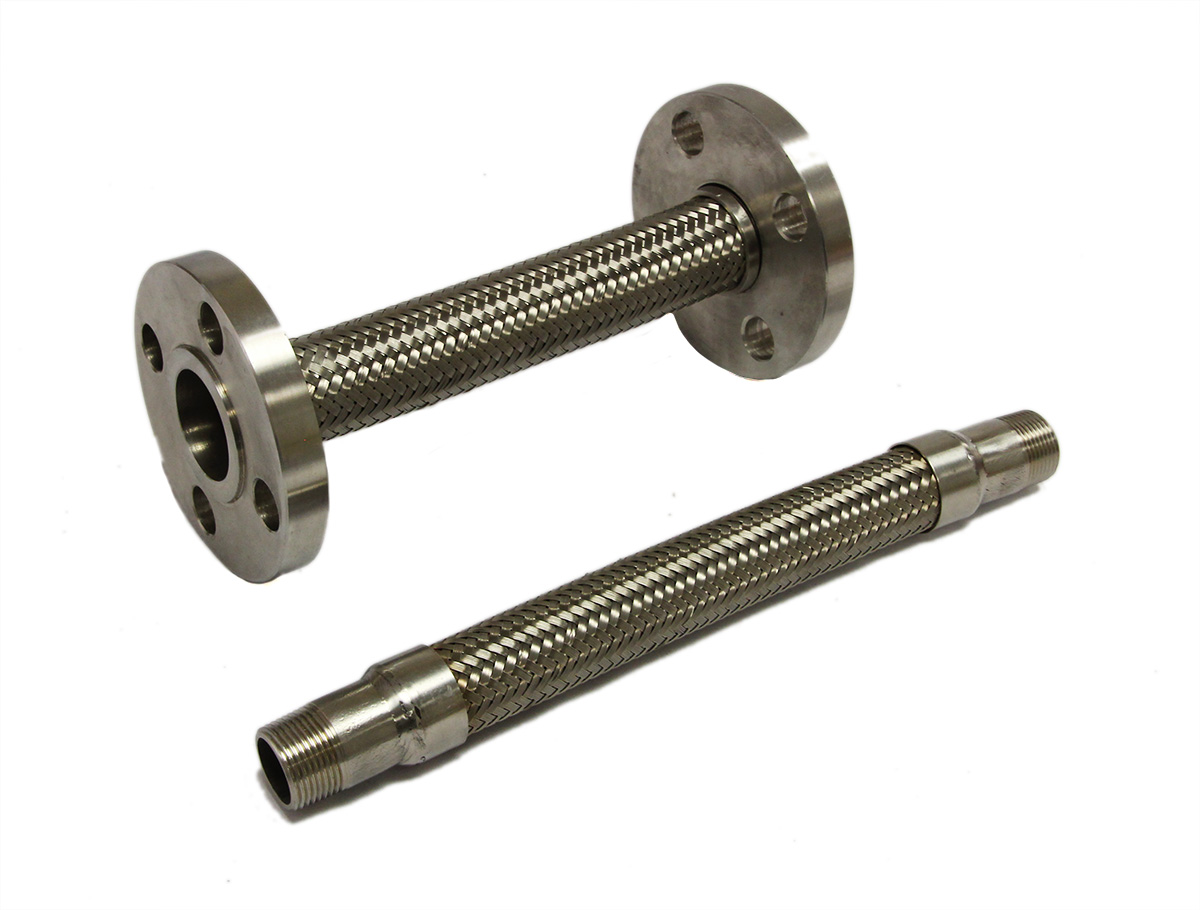

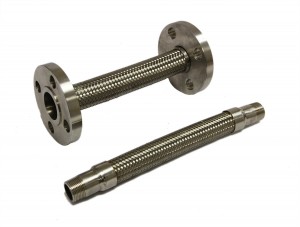

Mason FFL

The Mason FFL stainless steel braided hose has fixed and floating raised face flanges. Years ago, almost all stainless steel hose was manufactured with a floating flange on one end. It is still important because it makes lining up the holes easier during installation, and eliminates the possibility of twisting the hose when the holes do not line up. Twisting contributes to early failure. Mason carries a full line of stainless steel and bronze braided hose for any application and end fitting connection.

For more information on the Mason FFL and other braided hose products, please download the bulletin here.

Thermal Expansion and Guides

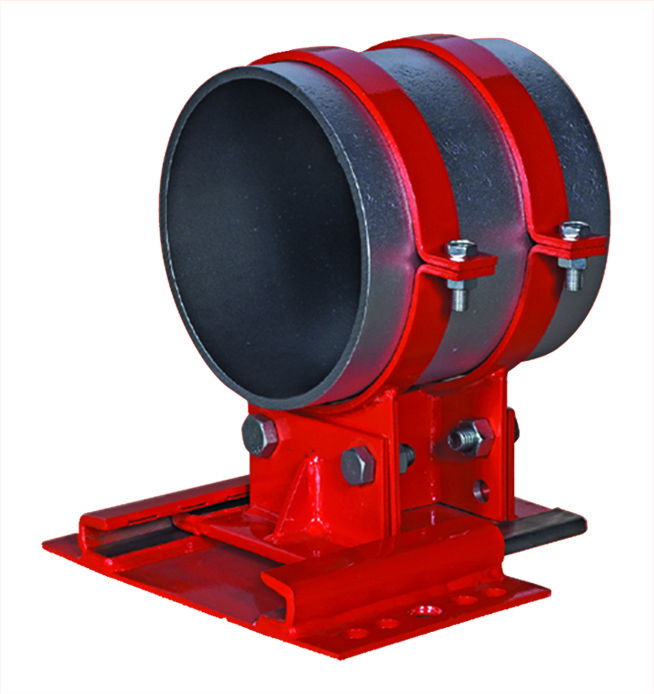

Mason ASG (Adjustable Sliding Guide)

Focusing on improving designs through feedback led to the creation of the adjustable sliding guide (ASG) which has one size per pipe diameter and adjusts to allow varying thicknesses of insulation, unlike typical spider guides. A rated load capacity also allows the ASG to be used as a support point on a run of piping. With movements equal or greater than spider guides, the ASG is superior to all traditional guide designs.

For more information on the Mason ASG, please download the bulletin here.
